Rhymney Railway 47' 9" All 3rd (2 comp) Coach

RR

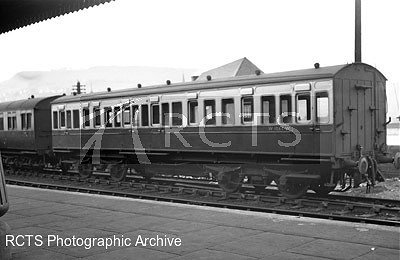

Rhymney Railway 47' 9rdquo; All 3rd Coach

Copyright RCTS

These carriages were built between 1919 & 1921 at the Rhymney's own workshop at Caerphilly and the Gloucester Railway Carriage & Wagon Co. Ltd to Diag C10. They survived in service until the 1950s , some being down graded to colliey workmen's trains. Most were Auto Train fitted by the Rhymney almost as soon as they were built, after grouping the GWR made various alterations. For RR & GWR numbering refer to the data sheet here. Rhymney Railway Carriage Data

This is a multimedia kit with etched BRASS - Body, Bogie & Underframe, (Nickel Silver option avaialable), printed or cast brass parts - all the bigger or more difficult folds "releaved" to make bending possible with care by hand.
The Bogies have a full break gear insert with plastic brake shoes (NO shorts) Rhymney Bogie insert Test picture and designed to accept Slater Wheels, but others shouldn't be a problem.
The Underframe has dynamo, battery box, brake cylinder and linkage.
The Body design has been designed to easy glazing after painting and is designed to bolt the underframe to make painting easier. The floor is removable which again will make painting easier and allow the fitting of interior detail. (Seperate pack)
As per normal wheels, paint and transfers required to finish.

Kit Price TBA

Release Date
July 2023
